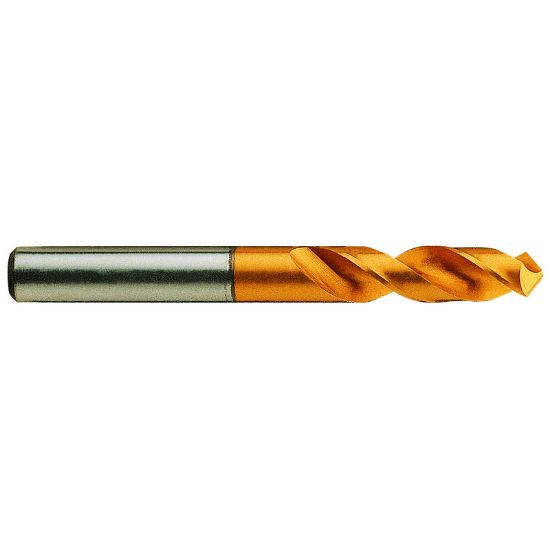

YG-1 0731KCN 7.3MM HSS-EX HPD-SUS Twist Drill TiN-Coated (Jobbers)

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG10731KCN
Delivery date: 3-5 days
$23.73

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Package Size 1
Shipping State Illinois
Application Drilling
Made In USA No
Dimensional Specifications
Cutter Dia 0.2874 7.30MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2874 7.30MM
Included Angle 130°
Shank/Pilot Dia 0.2874 7.30MM
Drill Length Type Jobber
Flute Length 2.7170 69.01MM
Cut Rating <40HRC Steel, Stainless Steel, Copper
Cut Dia Min 0.2874 7.30MM
Tool Material High Speed Steel
Overall Len 4.4488 113.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Contractor Yes
