  • YG-1 07308CH DIA 13/32 SH 0.3750 LOC 1.00 OAL 2.6870 End Mill Standard Flute Standard Helix Cobalt Hardslick Single End Square Sharp General Purpose

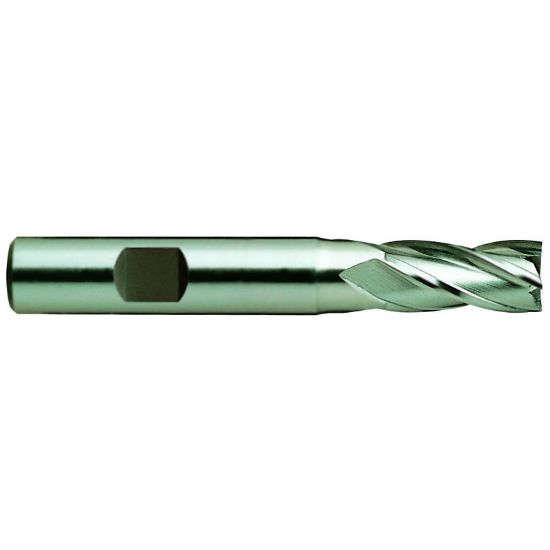

Picture of YG-1 07308CH DIA 13/32 SH 0.3750 LOC 1.00 OAL 2.6870 End Mill Standard Flute Standard Helix Cobalt Hardslick Single End Square Sharp General Purpose

YG-1 07308CH DIA 13/32 SH 0.3750 LOC 1.00 OAL 2.6870 End Mill Standard Flute Standard Helix Cobalt Hardslick Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-07308CH
Delivery date: 3-5 days
$43.40

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Coating Hardslick
Performance Rating General Performance
Package Size 1
Application Face Milling, Slot Milling, Side Milling
Made In USA No
Dimensional Specifications
Overall Len 2.6870 68.25MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Weldon
Length Of Cut 1.0000 25.40MM
Cutter Style Cobalt Finisher
Inch/Metric Inch
Tool Material Cobalt
Single/Double End Single End
Helix Angle 30°
Cutter Dia 0.4062 10.32MM - 13/32
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
