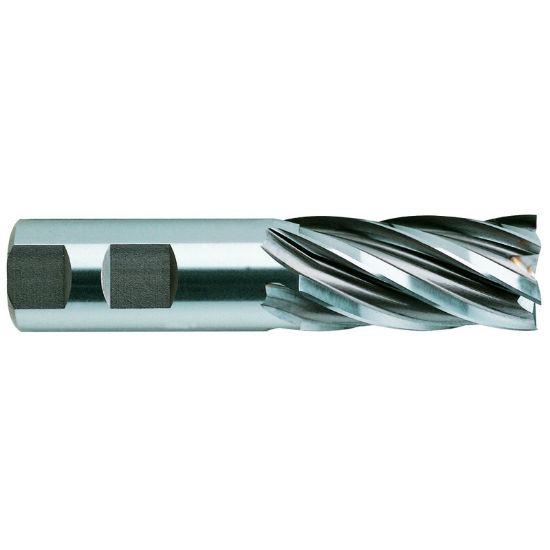

YG-1 07177HN DIA 1 SH 1.00 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-07177HN
Delivery date: 3-5 days
$63.37

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Face Milling, Side Milling
Performance Rating General Performance
Coating TiN
Package Size 1
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Tool Material High Speed Steel
Length Type Standard
Overall Len 4.5000 114.30MM
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style HSS Finisher
Single/Double End Single End
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
Machine Side Connection Type Weldon
Flutes/Inserts 6
Length Of Cut 2.0000 50.80MM
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
