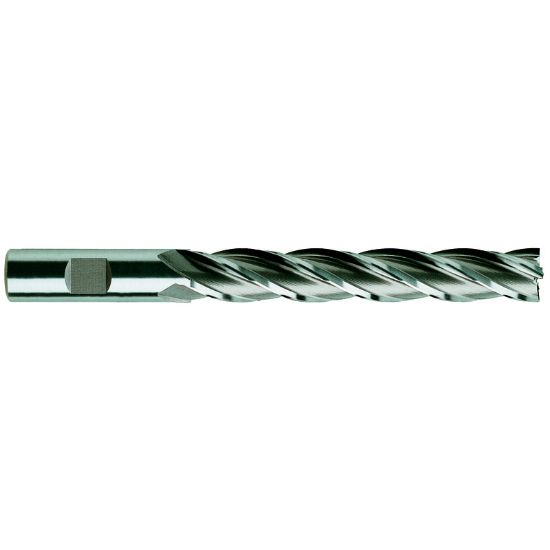

YG-1 06462CF DIA 1-1/2 SH 1.2500 LOC 8.00 OAL 10.50 End Mill Standard Flute Standard Helix Cobalt TiAlN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-06462CF
Delivery date: 3-5 days
$304.00

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Performance Rating General Performance
Package Size 1
Made In USA No
Coating TiAlN
Shipping State Illinois
Dimensional Specifications
Helix Angle 30°
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Length Of Cut 8.0000 203.20MM
Single/Double End Single End
Overall Len 10.5000 266.70MM
Length Type Extra Long
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Flutes/Inserts 6
Cutter Style Cobalt Finisher
Inch/Metric Inch
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
