  • YG-1 0641L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 90°

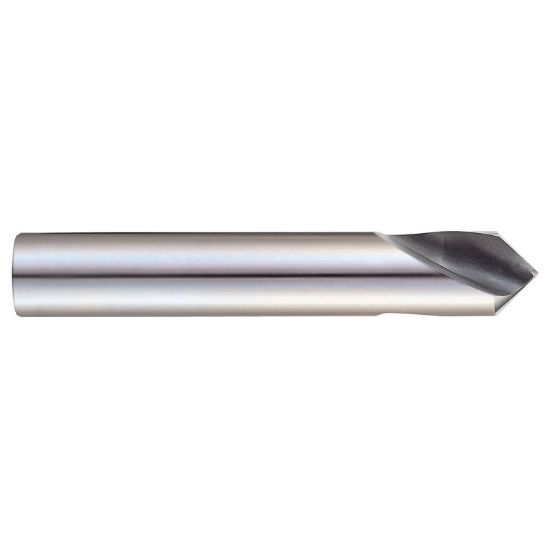

Picture of YG-1 0641L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 90°

YG-1 0641L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 90°

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG10641L
Delivery date: 3-5 days
$41.96

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Spot Drilling, Drilling, Center Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Drill Length Type Standard
Overall Len 6.1400 155.96MM
Tool Material Cobalt
Cut Rating <40HRC Steel, Stainless Steel, Copper
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Flutes/Inserts 2
Included Angle 90°
Cutter Dia 1.0000 25.40MM
Flute Length 1.9680 49.99MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Contractor Yes
