  • YG-1 06305CN DIA 3/8 SH 0.3750 LOC 2.50 OAL 4.2500 End Mill Standard Flute Standard Helix Cobalt TiN Single End Square Sharp General Purpose

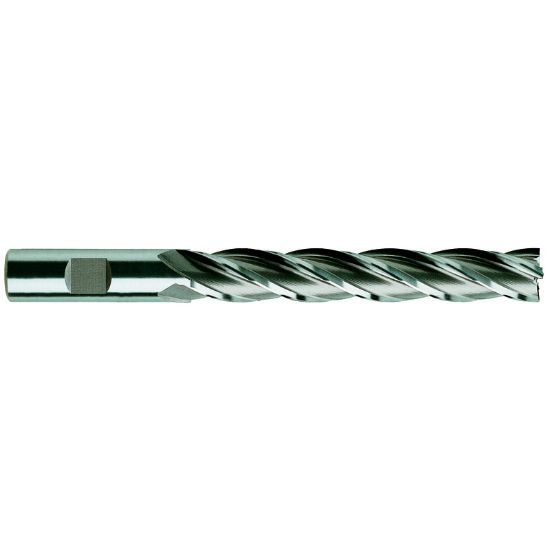

Picture of YG-1 06305CN DIA 3/8 SH 0.3750 LOC 2.50 OAL 4.2500 End Mill Standard Flute Standard Helix Cobalt TiN Single End Square Sharp General Purpose

YG-1 06305CN DIA 3/8 SH 0.3750 LOC 2.50 OAL 4.2500 End Mill Standard Flute Standard Helix Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-06305CN
Delivery date: 3-5 days
$31.99

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Performance Rating General Performance
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Coating TiN
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Length Of Cut 2.5000 63.50MM
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Cutter Dia 0.3750 9.53MM - 3/8
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Inch/Metric Inch
Length Type Extra Long
Helix Angle 30°
Overall Len 4.2500 107.95MM
Flutes/Inserts 4
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
