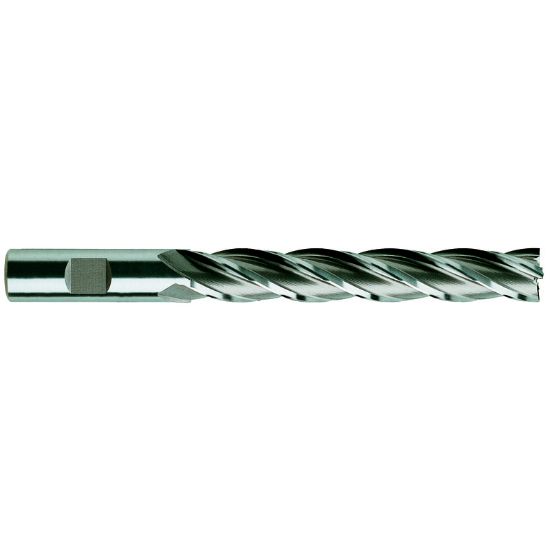

YG-1 06241HN DIA 2 SH 2.00 LOC 8.00 OAL 11.7500 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-06241HN
Delivery date: 3-5 days
$441.28

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Package Size 1
Performance Rating General Performance
Coating TiN
Made In USA No
Shipping State Illinois
Dimensional Specifications
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Of Cut 8.0000 203.20MM
Cutter Style HSS Finisher
Single/Double End Single End
Overall Len 11.7500 298.45MM
End Of Tool Shape Square
Machine Side Connection Size 2.0000 50.80MM
Length Type Extra Long
Tool Material High Speed Steel
Shank/Pilot Dia 2.0000 50.80MM - 2
Inch/Metric Metric
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Weldon
Flutes/Inserts 6
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Job Shop Yes
