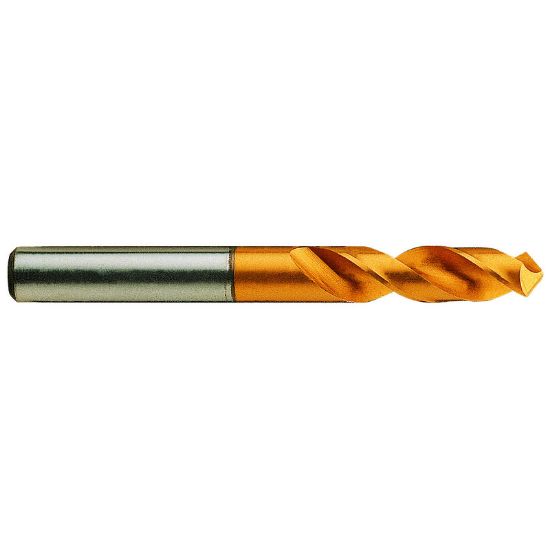

YG-1 0581JCN 5.8MM HSS-EX HPD-SUS Twist Drill TiN-Coated (Stub)

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG10581JCN
Delivery date: 3-5 days
$18.16

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Package Size 1
Application Drilling
Shipping State Illinois
Made In USA No
Dimensional Specifications
Cut Dia Min 0.2283 5.80MM
Machine Side Connection Type Cylindrical
Included Angle 130°
Overall Len 2.8346 72.00MM
Drill Length Type Stub
Machine Side Connection Size 0.2283 5.80MM
Cutter Dia 0.2283 5.80MM
Shank/Pilot Dia 0.2283 5.80MM
Flute Length 1.1020 27.99MM
Cut Rating <40HRC Steel, Stainless Steel, Copper
Tool Material High Speed Steel
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Contractor Yes
