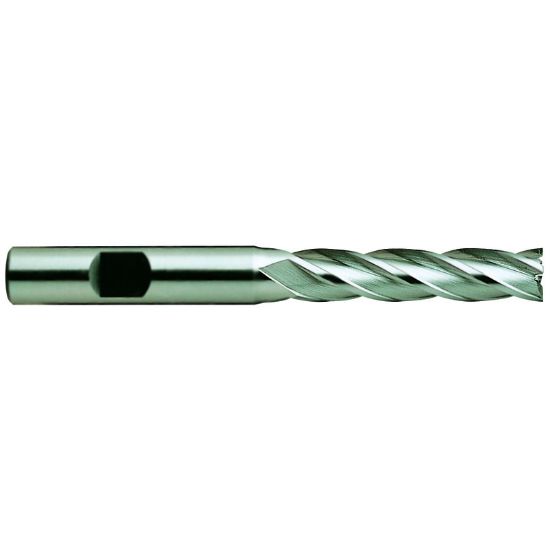

YG-1 05485CC DIA 2 SH 2.00 LOC 4.00 OAL 7.7500 End Mill Standard Flute Standard Helix Cobalt TiCN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-05485CC
Delivery date: 3-5 days
$330.19

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Coating TiCN
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Weldon
Flutes/Inserts 6
Cutter Style Cobalt Finisher
Helix Angle 30°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Overall Len 7.7500 196.85MM
End Of Tool Shape Square
Shank/Pilot Dia 2.0000 50.80MM - 2
Length Type Long
Cutter Dia 2.0000 50.80MM
Inch/Metric Inch
Machine Side Connection Size 2.0000 50.80MM
Length Of Cut 4.0000 101.60MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
