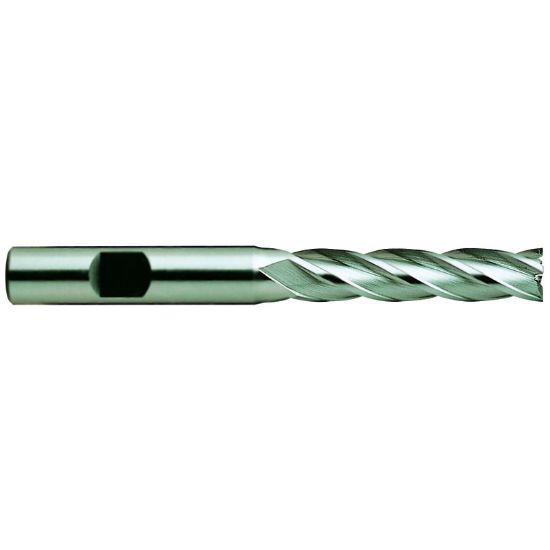

YG-1 05394CC DIA 7/8 SH 0.8750 LOC 3.50 OAL 5.7500 End Mill Standard Flute Standard Helix Cobalt TiCN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-05394CC
Delivery date: 3-5 days
$92.72

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Coating TiCN
Package Size 1
Performance Rating General Performance
Application Face Milling, Slot Milling, Side Milling
Made In USA No
Dimensional Specifications
Cutter Dia 0.8750 22.23MM - 7/8
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Type Long
Overall Len 5.7500 146.05MM
Length Of Cut 3.5000 88.90MM
End Of Tool Shape Square
Inch/Metric Inch
Tool Material Cobalt
Single/Double End Single End
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Machine Side Connection Size 0.8750 22.23MM
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Helix Angle 30°
Flutes/Inserts 4
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
