  • YG-1 05313CN DIA 7/16 SH 0.50 LOC 1.7500 OAL 3.7500 End Mill Standard Flute Standard Helix Cobalt TiN Single End Square Sharp General Purpose

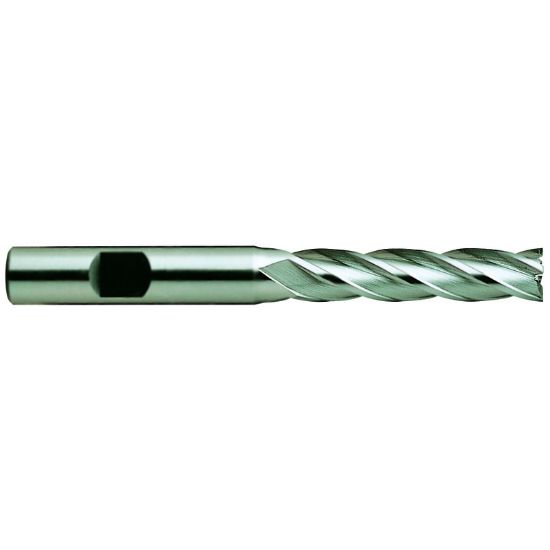

Picture of YG-1 05313CN DIA 7/16 SH 0.50 LOC 1.7500 OAL 3.7500 End Mill Standard Flute Standard Helix Cobalt TiN Single End Square Sharp General Purpose

YG-1 05313CN DIA 7/16 SH 0.50 LOC 1.7500 OAL 3.7500 End Mill Standard Flute Standard Helix Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-05313CN
Delivery date: 3-5 days
$30.51

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Face Milling, Slot Milling
Coating TiN
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 4
Length Type Long
Length Of Cut 1.7500 44.45MM
Cutter Dia 0.4375 11.11MM - 7/16
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Cutter Style Cobalt Finisher
Helix Angle 30°
End Of Tool Shape Square
Inch/Metric Inch
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
