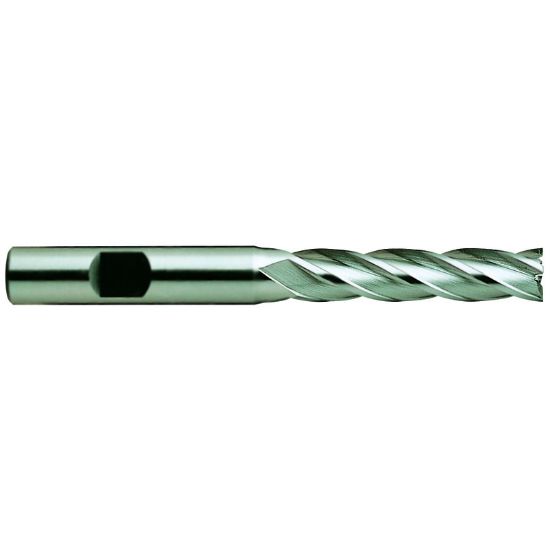

YG-1 05176HN DIA 1 SH 1.00 LOC 4.00 OAL 6.50 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-05176HN
Delivery date: 3-5 days
$94.36

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Side Milling, Face Milling
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
Tool Material High Speed Steel
Flutes/Inserts 4
Length Type Long
Machine Side Connection Type Weldon
Length Of Cut 4.0000 101.60MM
Helix Angle 30°
Overall Len 6.5000 165.10MM
End Of Tool Shape Square
Cutter Dia 1.0000 25.40MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style HSS Finisher
Single/Double End Single End
Cutting & Machining Properties
Center Cutting No
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
