  • YG-1 0481L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 90°

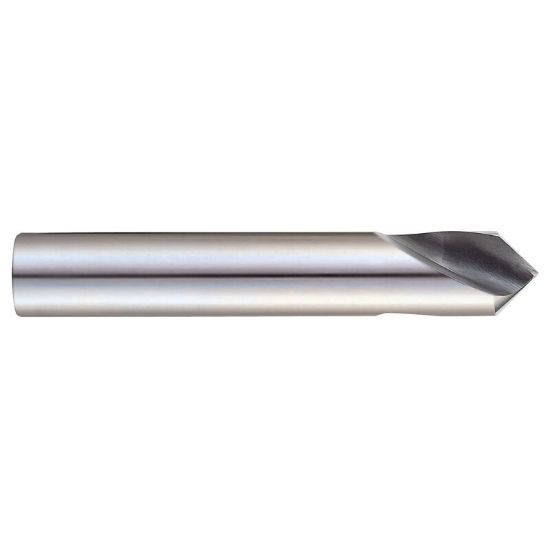

Picture of YG-1 0481L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 90°

YG-1 0481L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 90°

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG10481L
Delivery date: 3-5 days
$26.97

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Center Drilling, Spot Drilling, Drilling
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Cut Rating <40HRC Steel, Stainless Steel, Copper
Machine Side Connection Type Cylindrical
Overall Len 5.1600 131.06MM
Drill Length Type Standard
Tool Material Cobalt
Flute Length 1.9680 49.99MM
Flutes/Inserts 2
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Included Angle 90°
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Contractor Yes
