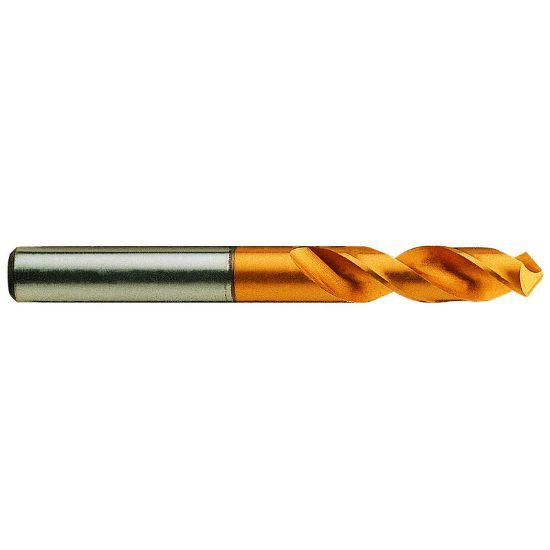

YG-1 0481JCN 4.8MM HSS-EX HPD-SUS Twist Drill TiN-Coated (Stub)

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG10481JCN
Delivery date: 3-5 days
$13.60

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Dia 0.1890 4.80MM - #12
Machine Side Connection Size 0.1890 4.80MM
Flutes/Inserts 2
Shank/Pilot Dia 0.1890 4.80MM - #12
Drill Length Type Stub
Flute Length 1.0240 26.01MM
Overall Len 2.7560 70.00MM
Cut Dia Min 0.1890 4.80MM - #12
Tool Material High Speed Steel
Cut Rating <40HRC Steel, Stainless Steel, Copper
Machine Side Connection Type Cylindrical
Included Angle 130°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Contractor Yes
