  • YG-1 04478CH DIA 2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt Hardslick Single End Square Sharp General Purpose

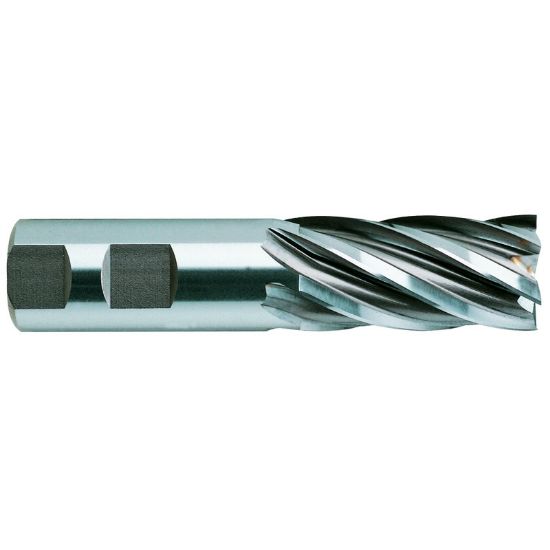

Picture of YG-1 04478CH DIA 2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt Hardslick Single End Square Sharp General Purpose

YG-1 04478CH DIA 2 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix Cobalt Hardslick Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-04478CH
Delivery date: 3-5 days
$220.09

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Slot Milling, Side Milling, Face Milling
Coating Hardslick
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Length Type Standard
Helix Angle 30°
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
End Of Tool Shape Square
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Weldon
Flutes/Inserts 6
Length Of Cut 2.0000 50.80MM
Cutter Style Cobalt Finisher
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
