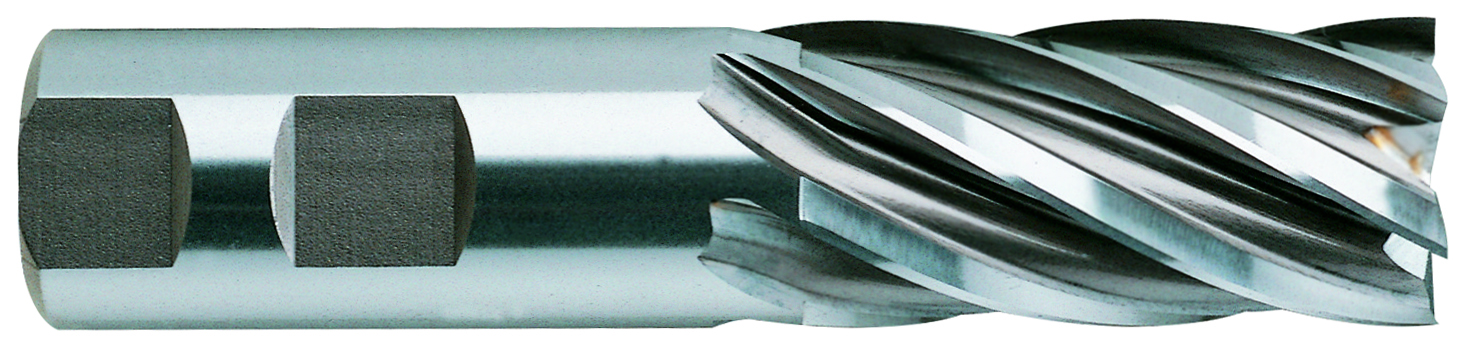

Picture of YG-1 04405CH Dia 15/16 SH 0.6250 LOC 1.8750 OAL4.00 End Mill Standard Flute Standard Helix Cobalt Hardslick Single End Square Sharp General Purpose

YG-1 04405CH Dia 15/16 SH 0.6250 LOC 1.8750 OAL4.00 End Mill Standard Flute Standard Helix Cobalt Hardslick Single End Square Sharp General Purpose

Part Number: YG-04405CH
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1200736
Vendor: Sussex Tool and Supply
$102.26

Description

YG-1 Standard Helix End Mill Cobalt Hardslick Square Sharp Standard Flute Flutes 6 Single End GENERAL Purpose Cobalt Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Cobalt Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 6
Tool Dia 0.9375 23.81MM - 15/16
Length Of Cut 1.8750 47.63MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Materials & Finish
Tool Material Cobalt
Cutting Edge Mat Cobalt
Coating Hardslick
