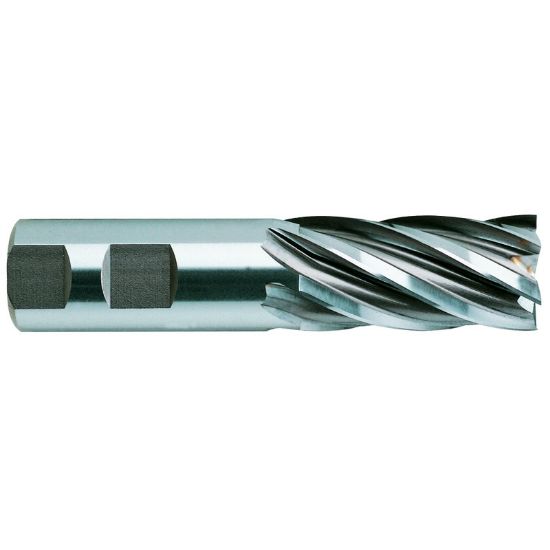

YG-1 04231HN DIA 2 SH 2.00 LOC 2.00 OAL 5.7500 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-04231HN
Delivery date: 3-5 days
$193.61

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Performance Rating General Performance
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Made In USA No
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Weldon
Flutes/Inserts 6
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Machine Side Connection Size 2.0000 50.80MM
Cutter Style HSS Finisher
Overall Len 5.7500 146.05MM
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 2.0000 50.80MM - 2
Single/Double End Single End
Tool Material High Speed Steel
Length Type Standard
Helix Angle 30°
Cutting & Machining Properties
Center Cutting No
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
