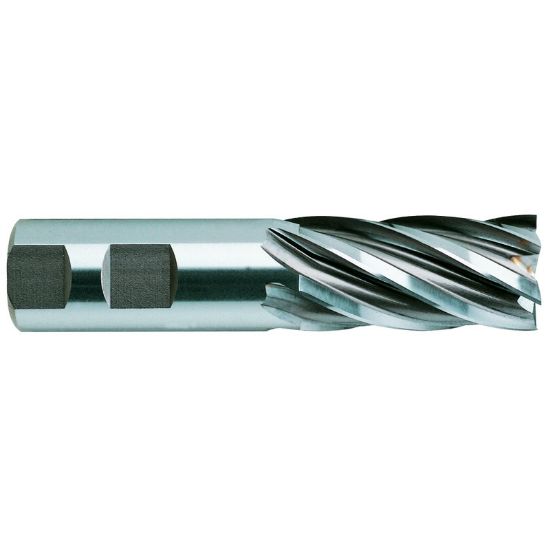

YG-1 04202HN DIA 1-3/8 SH 1.00 LOC 2.00 OAL 4.50 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-04202HN
Delivery date: 3-5 days
$86.88

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Package Size 1
Application Side Milling, Face Milling
Coating TiN
Performance Rating General Performance
Dimensional Specifications
Overall Len 4.5000 114.30MM
End Of Tool Shape Square
Tool Material High Speed Steel
Length Type Standard
Cutter Dia 1.3750 34.93MM - 1-3/8
Machine Side Connection Type Weldon
Flutes/Inserts 6
Length Of Cut 2.0000 50.80MM
Helix Angle 30°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style HSS Finisher
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Center Cutting No
Industry-Specific Applications
Job Shop Yes
