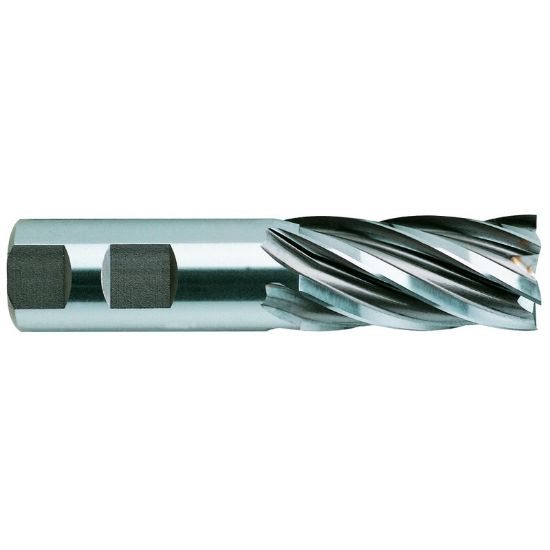

YG-1 04155HN DIA 15/16 SH 0.6250 LOC 1.8750 OAL 4.00 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-04155HN
Delivery date: 3-5 days
$39.93

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Performance Rating General Performance
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Type Weldon
Flutes/Inserts 6
Inch/Metric Inch
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutter Style HSS Finisher
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Tool Material High Speed Steel
Length Of Cut 1.8750 47.63MM
Length Type Standard
Cutter Dia 0.9375 23.81MM - 15/16
Overall Len 4.0000 101.60MM
Helix Angle 30°
Cutting & Machining Properties
Center Cutting No
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
