  • YG-1 0401L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 90°

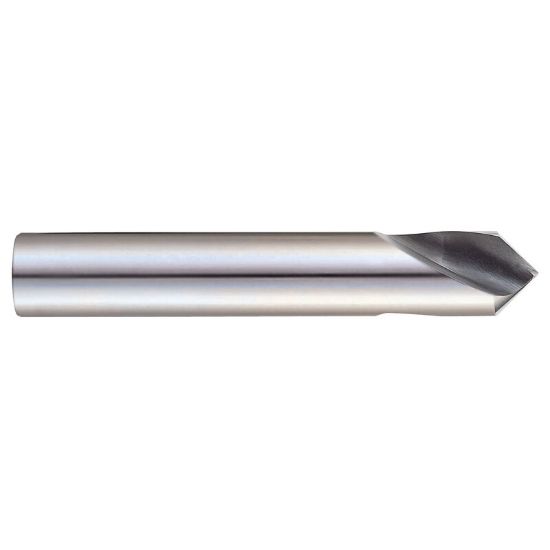

Picture of YG-1 0401L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 90°

YG-1 0401L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 90°

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG10401L
Delivery date: 3-5 days
$19.48

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Spot Drilling, Center Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Drill Length Type Standard
Tool Material Cobalt
Machine Side Connection Size 0.6250 15.88MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Flute Length 1.5750 40.01MM
Included Angle 90°
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 4.5300 115.06MM
Cut Rating <40HRC Steel, Stainless Steel, Copper
Cut Dia Min 0.6250 15.88MM - 5/8
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Contractor Yes
