  • YG-1 03337CN DIA 5/8 SH 0.6250 LOC 1.3750 OAL 4.6250 End Mill Standard Flute Standard Helix Cobalt TiN Single End Square Sharp General Purpose

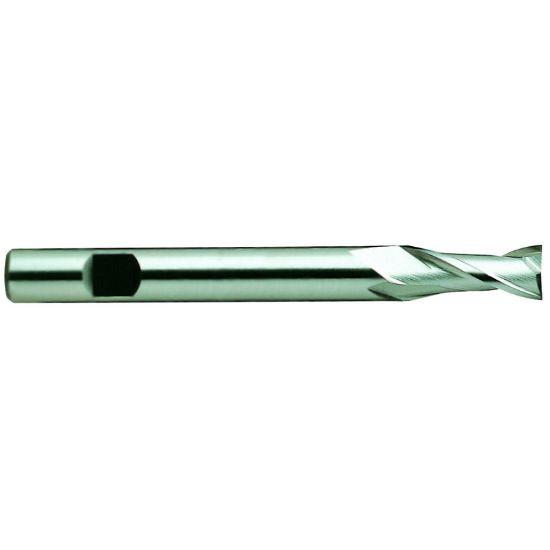

Picture of YG-1 03337CN DIA 5/8 SH 0.6250 LOC 1.3750 OAL 4.6250 End Mill Standard Flute Standard Helix Cobalt TiN Single End Square Sharp General Purpose

YG-1 03337CN DIA 5/8 SH 0.6250 LOC 1.3750 OAL 4.6250 End Mill Standard Flute Standard Helix Cobalt TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-03337CN
Delivery date: 3-5 days
$51.71

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Application Face Milling, Slot Milling, Side Milling
Coating TiN
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 4.6250 117.48MM
Flutes/Inserts 2
Inch/Metric Inch
Length Of Cut 1.3750 34.93MM
Tool Material Cobalt
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Length Type Extended
Helix Angle 30°
Cutter Dia 0.6250 15.88MM - 5/8
Shank/Pilot Dia 0.6250 15.88MM - 5/8
End Of Tool Shape Square
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting No
Industry-Specific Applications
Job Shop Yes
