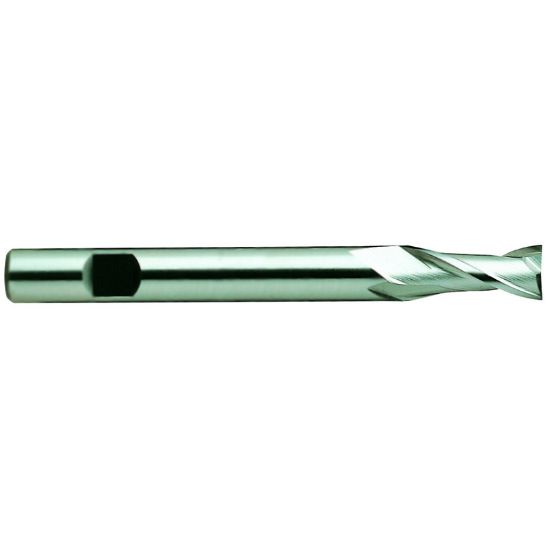

YG-1 03109HN DIA 3/4 SH 0.7500 LOC 1.6250 OAL 5.3750 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-03109HN
Delivery date: 3-5 days
$59.95

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Package Size 1
Application Face Milling, Side Milling
Coating TiN
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Overall Len 5.3750 136.53MM
End Of Tool Shape Square
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Length Of Cut 1.6250 41.28MM
Machine Side Connection Type Weldon
Length Type Extended
Helix Angle 30°
Cutter Style HSS Finisher
Single/Double End Single End
Tool Material High Speed Steel
Cutter Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Coolant Thru No
Center Cutting No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
