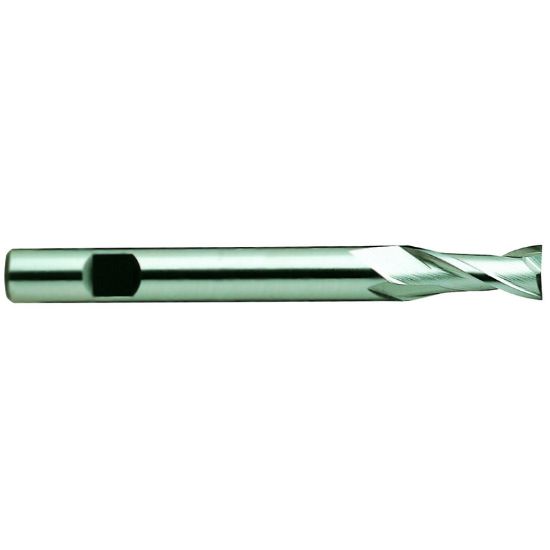

YG-1 03055HN DIA 3/8 SH 0.3750 LOC 0.7500 OAL 3.3125 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-03055HN
Delivery date: 3-5 days
$21.25

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Face Milling
Shipping State Illinois
Coating TiN
Made In USA No
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Helix Angle 30°
Machine Side Connection Size 0.3750 9.53MM
Machine Side Connection Type Weldon
Length Type Extended
Inch/Metric Inch
Tool Material High Speed Steel
Overall Len 3.3125 84.14MM
Flutes/Inserts 2
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Length Of Cut 0.7500 19.05MM
Cutter Style HSS Finisher
Single/Double End Single End
Cutter Dia 0.3750 9.53MM - 3/8
Cutting & Machining Properties
Cutting Edge Mat HSS
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
