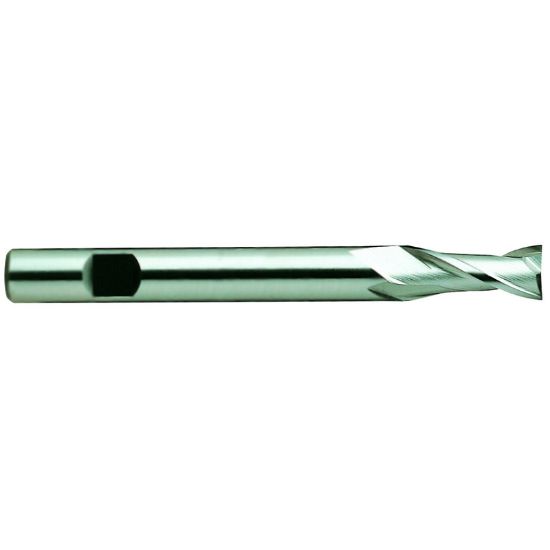

YG-1 03039HN DIA 1/8 SH 0.3750 LOC 0.3750 OAL 2.3750 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-03039HN
Delivery date: 3-5 days
$19.63

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Application Side Milling, Face Milling
Package Size 1
Dimensional Specifications
Tool Material High Speed Steel
Flutes/Inserts 2
Machine Side Connection Size 0.3750 9.53MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 2.3750 60.33MM
End Of Tool Shape Square
Cutter Dia 0.1250 3.18MM - 1/8
Machine Side Connection Type Weldon
Length Of Cut 0.3750 9.53MM
Length Type Extended
Helix Angle 30°
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Style HSS Finisher
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Center Cutting No
Industry-Specific Applications
Job Shop Yes
