  • YG-1 0241L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 90°

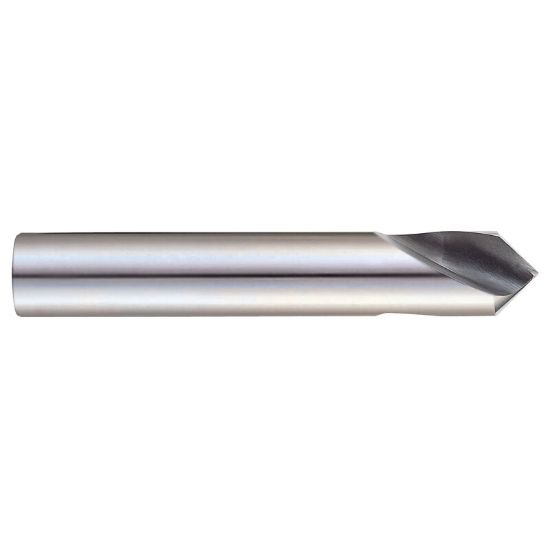

Picture of YG-1 0241L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 90°

YG-1 0241L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 90°

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG10241L
Delivery date: 3-5 days
$7.59

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Center Drilling, Spot Drilling, Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Rating <40HRC Steel, Stainless Steel, Copper
Cut Dia Min 0.3750 9.53MM - 3/8
Machine Side Connection Type Cylindrical
Drill Length Type Standard
Flutes/Inserts 2
Included Angle 90°
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 3.5000 88.90MM
Machine Side Connection Size 0.3750 9.53MM
Tool Material Cobalt
Cutter Dia 0.3750 9.53MM - 3/8
Flute Length 0.8270 21.01MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Contractor Yes
