  • YG-1 0201L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 90°

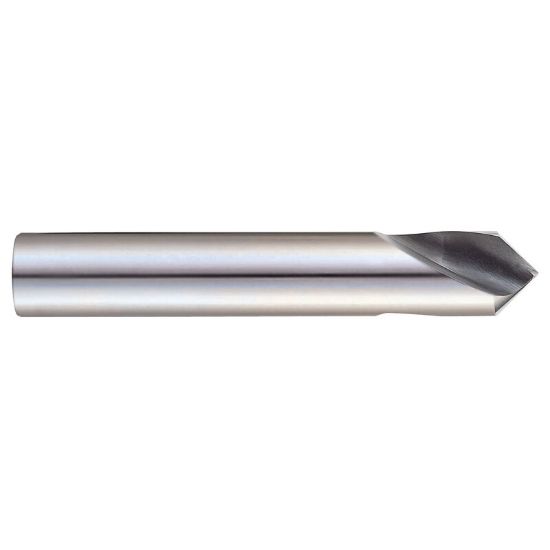

Picture of YG-1 0201L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 90°

YG-1 0201L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 90°

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG10201L
Delivery date: 3-5 days
$6.05

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Center Drilling, Spot Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.3125 7.94MM
Tool Material Cobalt
Overall Len 3.1100 78.99MM
Cutter Dia 0.3125 7.94MM - 5/16
Flute Length 0.9840 24.99MM
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Cut Rating <40HRC Steel, Stainless Steel, Copper
Cut Dia Min 0.3125 7.94MM - 5/16
Machine Side Connection Type Cylindrical
Drill Length Type Standard
Flutes/Inserts 2
Included Angle 90°
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Contractor Yes
