  • YG-1 0121L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 90°

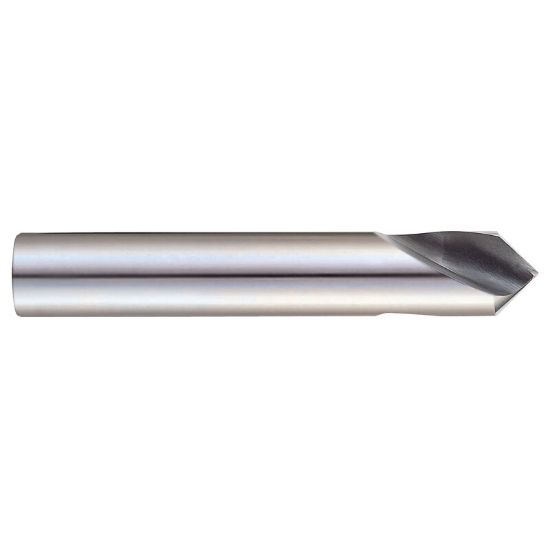

Picture of YG-1 0121L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 90°

YG-1 0121L Spot Drill Steel UP TO 35HRc/STAINLESS/COPPER 90°

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG10121L
Delivery date: 3-5 days
$5.01

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling, Spot Drilling, Center Drilling
Shipping State Illinois
Made In USA No
Dimensional Specifications
Tool Material Cobalt
Cut Dia Min 0.1875 4.76MM - 3/16
Machine Side Connection Size 0.1875 4.76MM
Machine Side Connection Type Cylindrical
Drill Length Type Standard
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Overall Len 2.4400 61.98MM
Flutes/Inserts 2
Included Angle 90°
Cut Rating <40HRC Steel, Stainless Steel, Copper
Cutter Dia 0.1875 4.76MM - 3/16
Flute Length 0.5900 14.99MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Contractor Yes
