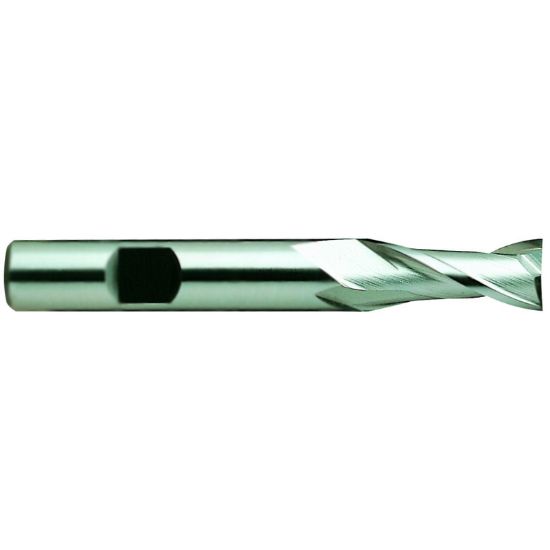

YG-1 01098HN DIA 11/16 SH 0.6250 LOC 1.3125 OAL 3.4375 End Mill Standard Flute Standard Helix HSS TiN Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-01098HN
Delivery date: 3-5 days
$36.35

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiN
Application Face Milling, Side Milling
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Overall Len 3.4375 87.31MM
Flutes/Inserts 2
Length Of Cut 1.3125 33.34MM
Cutter Dia 0.6875 17.46MM - 11/16
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.6250 15.88MM
Cutter Style HSS Finisher
Single/Double End Single End
Machine Side Connection Type Weldon
Helix Angle 30°
End Of Tool Shape Square
Inch/Metric Inch
Tool Material High Speed Steel
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Center Cutting No
Industry-Specific Applications
Job Shop Yes
