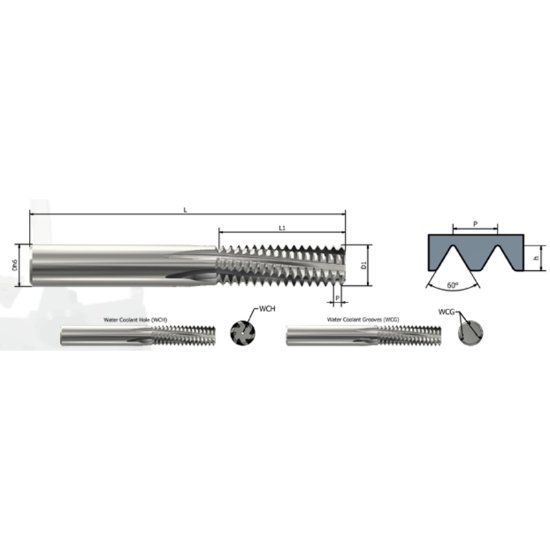

XACTFORM X8847 Carbide Thread Mill #3 48.00TPI Internal 0.060 Dia 1.500 OAL 3 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XACX8847
Delivery date: 3-5 days
$179.30

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Florida
Grade K27C
Package Size 1
Coating TiAlN
Application Thread Milling
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Size No.3
Machine Side Connection Type Cylindrical
Thread Pitch 48.00TPI
Length Of Cut 0.1460 3.71MM
Overall Len 1.5000 38.10MM
Flutes/Inserts 3
Cutter Dia 0.0600 1.52MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Machine Side Connection Size 0.1250 3.18MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Tool Material Carbide
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
