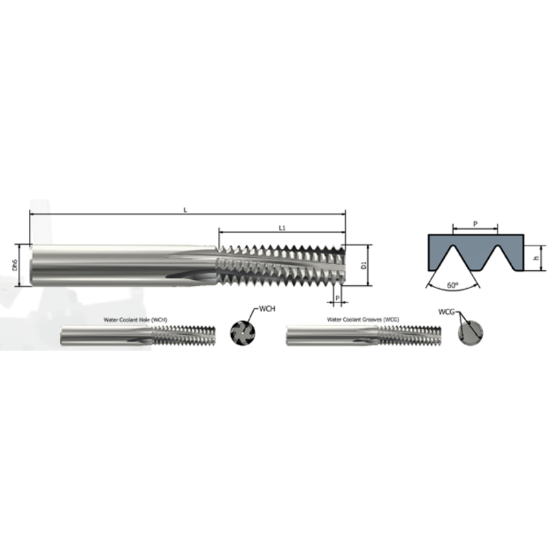

XACTFORM X8817 Carbide Thread Mill 9/16" 16.00TPI Internal 0.420 Dia 3.940 OAL 5 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XACX8817
Delivery date: 3-5 days
$502.70

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Made In USA No
Performance Rating High Performance
Package Size 1
Shipping State Florida
Coating TiAlN
Grade K27C
Dimensional Specifications
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Of Cut 1.1250 28.58MM
Thread Size 9/16"
Cut Rating <40HRC, Stainless, Iron, High Temp
Machine Side Connection Size 0.5000 12.70MM
Thread Pitch 16.00TPI
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Dia 0.4200 10.67MM
Overall Len 3.9400 100.08MM
Cutting & Machining Properties
Inter/Extern Internal
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
