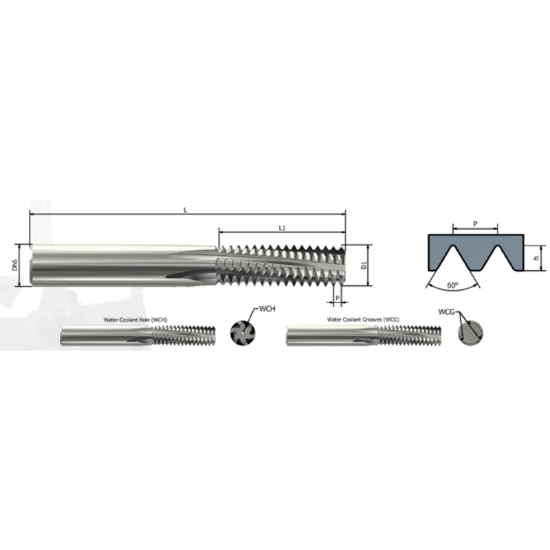

XACTFORM X8813 Carbide Thread Mill 7/16" 20.00TPI Internal 0.360 Dia 3.350 OAL 5 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XACX8813
Delivery date: 3-5 days
$429.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiAlN
Grade K27C
Performance Rating High Performance
Package Size 1
Shipping State Florida
Application Thread Milling
Made In USA No
Dimensional Specifications
Tool Material Steel
Overall Len 3.3500 85.09MM
Flutes/Inserts 5
Cut Rating <40HRC, Stainless, Iron, High Temp
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Thread Pitch 20.00TPI
Cutter Dia 0.3600 9.14MM
Machine Side Connection Size 0.3750 9.53MM
Length Of Cut 0.9000 22.86MM
Thread Size 7/16"
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Inter/Extern Internal
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
Energy Yes
