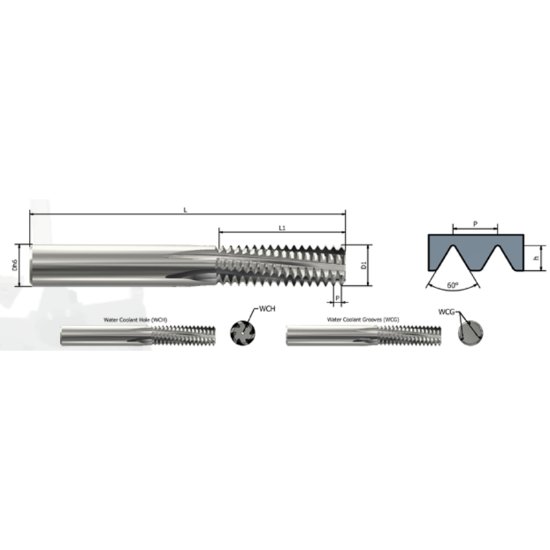

Picture of Xactform X8812 Carbide Thread Mill 3/8" 24.00TPI Internal 0.310 Dia 2.950 OAL 3 Flute

Xactform X8812 Carbide Thread Mill 3/8" 24.00TPI Internal 0.310 Dia 2.950 OAL 3 Flute

Part Number: XACX8812

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: 1295871
Vendor: Sussex Tool and Supply
$304.00
XACTFORM Mill Thread Carbide TIALN Carbide TiAlN (Titanium Aluminum Nitride) is a type of surface coating used to improve the performance and durability of tools and components, particularly in high-speed machining, hard machining, and stainless steel machining. It is characterized by high hardness, thermal stability, and oxidation resistance, making it suitable for demanding applications.
Products specifications
Attribute name Attribute value
Shipping State FLORIDA
Made In USA NO
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless, <40HRC, Iron, High Temp
Coating TiAlN
Overall Length 2.9500 74.93MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3120 7.92MM
Flutes/Inserts 3
Tool Dia 0.3100 7.87MM
Type Of Tool Thread Mill
Performance Rating High Performance
Length Of Cut 0.7500 19.05MM
Grade K27C
Thread Pitch 24.00TPI
Inter/Extern Internal
Thread Size 3/8"
