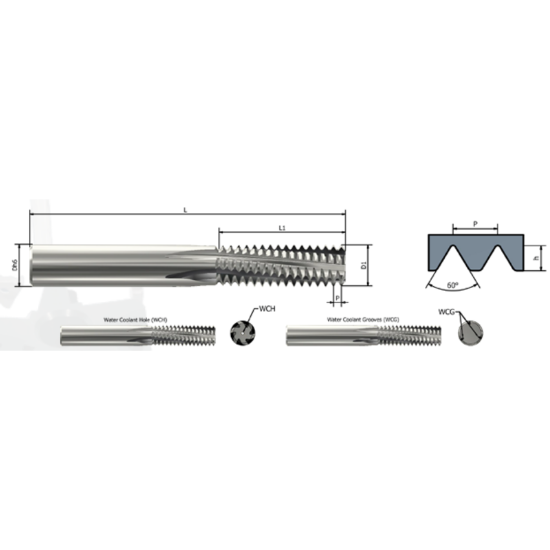

XACTFORM X8810 Carbide Thread Mill 5/16" 24.00TPI Internal 0.248 Dia 2.950 OAL 3 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XACX8810
Delivery date: 3-5 days
$264.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Made In USA No
Grade K27C
Coating TiAlN
Performance Rating High Performance
Shipping State Florida
Package Size 1
Dimensional Specifications
Thread Size 5/16"
Flutes/Inserts 3
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Thread Pitch 24.00TPI
Cut Rating <40HRC, Stainless, Iron, High Temp
Machine Side Connection Size 0.2500 6.35MM
Overall Len 2.9500 74.93MM
Cutter Dia 0.2480 6.30MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.6250 15.88MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
