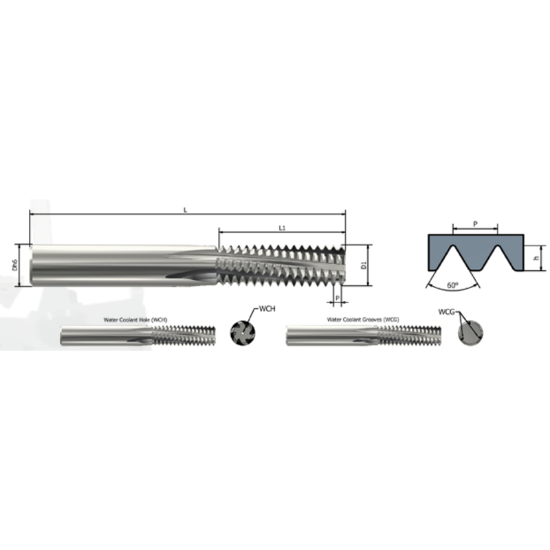

XACTFORM X8803 Carbide Thread Mill #6 32.00TPI Internal 0.095 Dia 1.500 OAL 3 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XACX8803
Delivery date: 3-5 days
$179.30

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiAlN
Grade K27C
Package Size 1
Shipping State Florida
Performance Rating High Performance
Application Thread Milling
Made In USA No
Dimensional Specifications
Thread Size No.6
Cut Rating <40HRC, Stainless, Iron, High Temp
Overall Len 1.5000 38.10MM
Flutes/Inserts 3
Length Of Cut 0.2813 7.15MM
Thread Pitch 32.00TPI
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Dia 0.0950 2.41MM
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutting & Machining Properties
Coolant Thru No
Inter/Extern Internal
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
Energy Yes
Automotive Yes
