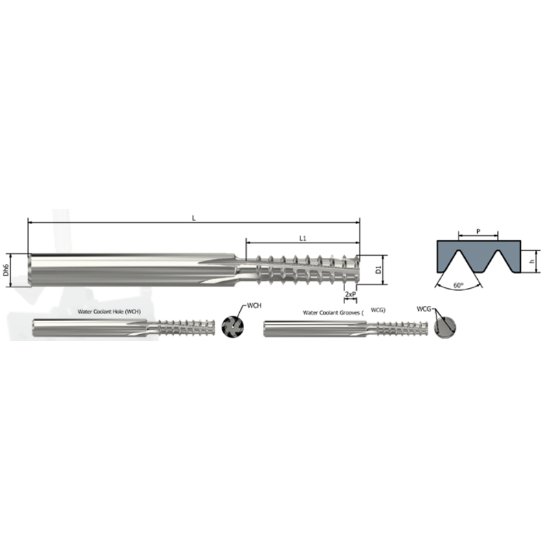

Picture of Xactform X8636 Carbide Thread Mill M4.5 0.75mm Internal 0.130 Dia 1.850 OAL 3 Flute

Xactform X8636 Carbide Thread Mill M4.5 0.75mm Internal 0.130 Dia 1.850 OAL 3 Flute

Part Number: XACX8636

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: 1295960
Vendor: Sussex Tool and Supply
$248.00
XACTFORM Mill Thread Carbide TIALN Carbide TiAlN (Titanium Aluminum Nitride) is a type of surface coating used to improve the performance and durability of tools and components, particularly in high-speed machining, hard machining, and stainless steel machining. It is characterized by high hardness, thermal stability, and oxidation resistance, making it suitable for demanding applications.
Products specifications
Attribute name Attribute value
Shipping State FLORIDA
Made In USA NO
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless, <40HRC, Iron, High Temp
Coating TiAlN
Mach Side Connection Size 0.1875 4.75MM
Overall Length 1.8500 46.99MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1870 4.75MM
Flutes/Inserts 3
Tool Dia 0.1300 3.30MM
Type Of Tool Thread Mill
Performance Rating High Performance
Length Of Cut 0.4724 12.00MM
Grade K27C
Thread Pitch 0.75MM
Thread Type METRIC
Inter/Extern Internal
Thread Size M4.5
