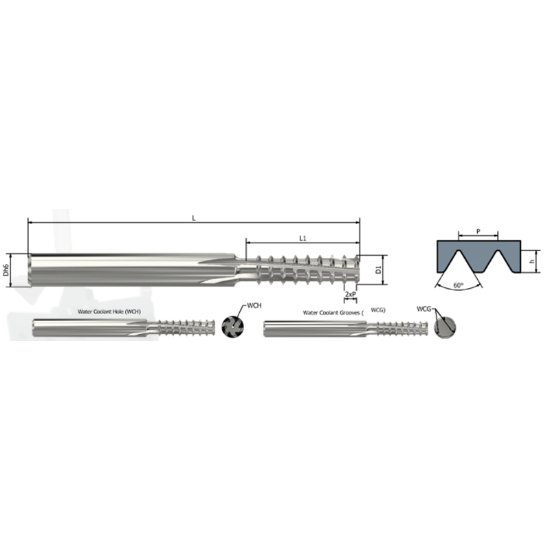

Picture of Xactform X8533 Carbide Thread Mill M3 0.50mm Internal 0.085 Dia 1.650 OAL 3 Flute

Xactform X8533 Carbide Thread Mill M3 0.50mm Internal 0.085 Dia 1.650 OAL 3 Flute

Part Number: XACX8533

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: 1295941
Vendor: Sussex Tool and Supply
$248.00
XACTFORM Mill Thread Carbide TIN Carbide
Products specifications
Attribute name Attribute value
Shipping State FLORIDA
Made In USA NO
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless, <40HRC, Iron, High Temp
Coating TIN
Mach Side Connection Size 0.1250 3.18MM
Overall Length 1.6500 41.91MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 3
Tool Dia 0.0850 2.16MM
Type Of Tool Thread Mill
Performance Rating High Performance
Length Of Cut 0.3150 8.00MM
Grade K20
Thread Pitch 0.50MM
Thread Type METRIC
Inter/Extern Internal
Thread Size M3
