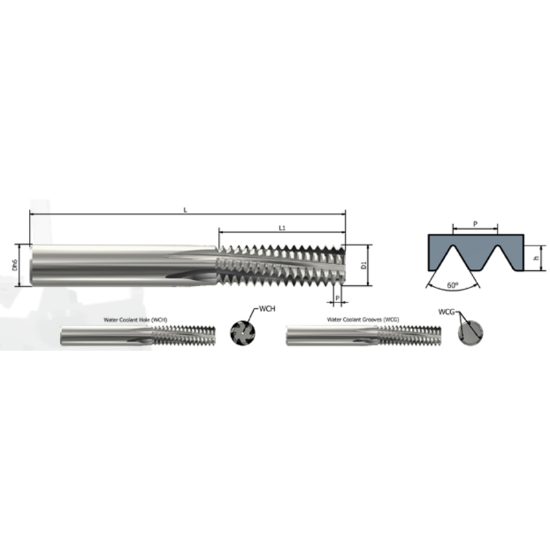

XACTFORM X8022 Carbide Thread Mill 3/4" 10.00TPI Internal 0.490 Dia 3.940 OAL 5 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XACX8022
Delivery date: 3-5 days
$502.70

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Shipping State Florida
Application Thread Milling
Performance Rating High Performance
Grade K20
Package Size 1
Dimensional Specifications
Thread Pitch 10.00TPI
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Dia 0.4900 12.45MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Thread Size 3/4"
Cut Rating <40HRC, Stainless, Iron, High Temp
Overall Len 3.9400 100.08MM
Machine Side Connection Size 0.5000 12.70MM
Length Of Cut 1.5000 38.10MM
Cutting & Machining Properties
Inter/Extern Internal
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Energy Yes
