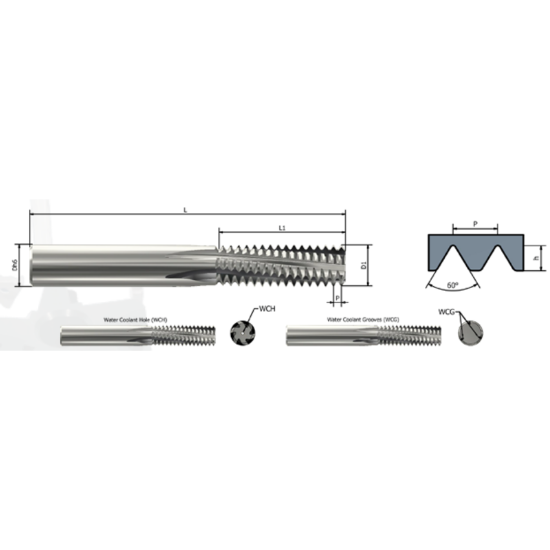

XACTFORM X8016 Carbide Thread Mill 1/2" 13.00TPI Internal 0.360 Dia 3.350 OAL 5 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XACX8016
Delivery date: 3-5 days
$429.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Thread Milling
Made In USA No
Coating TiN
Package Size 1
Grade K20
Shipping State Florida
Dimensional Specifications
Cut Rating <40HRC, Stainless, Iron, High Temp
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Thread Size 1/2"
Tool Material Steel
Overall Len 3.3500 85.09MM
Machine Side Connection Size 0.3750 9.53MM
Thread Pitch 13.00TPI
Cutter Dia 0.3600 9.14MM
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Cutting & Machining Properties
Inter/Extern Internal
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
Energy Yes
