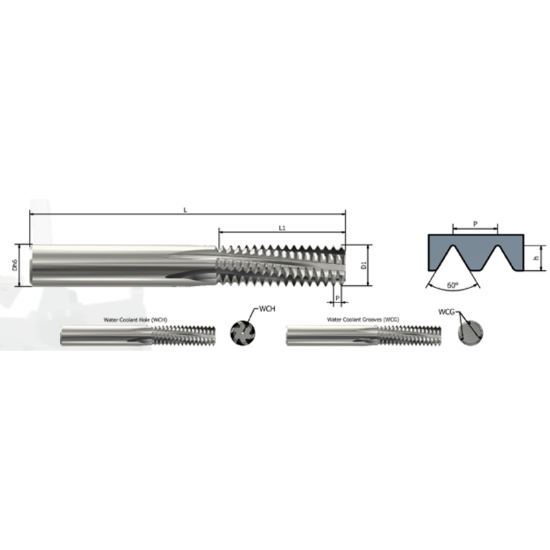

XACTFORM X8011 Carbide Thread Mill 3/8" 16.00TPI Internal 0.290 Dia 2.950 OAL 5 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XACX8011
Delivery date: 3-5 days
$334.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Made In USA No
Grade K20
Shipping State Florida
Package Size 1
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Thread Size 3/8"
Cutter Dia 0.2900 7.37MM - L
Shank/Pilot Dia 0.3120 7.92MM
Length Of Cut 0.7500 19.05MM
Thread Pitch 16.00TPI
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cut Rating <40HRC, Stainless, Iron, High Temp
Overall Len 2.9500 74.93MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Inter/Extern Internal
Industry-Specific Applications
Medical Yes
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
