XACTFORM X8005 Carbide Thread Mill #10 32.00TPI Internal 0.146 Dia 1.970 OAL 3 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XACX8005
Delivery date: 3-5 days
$190.30

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Florida
Coating TiN
Application Thread Milling
Package Size 1
Grade K20
Made In USA No
Performance Rating High Performance

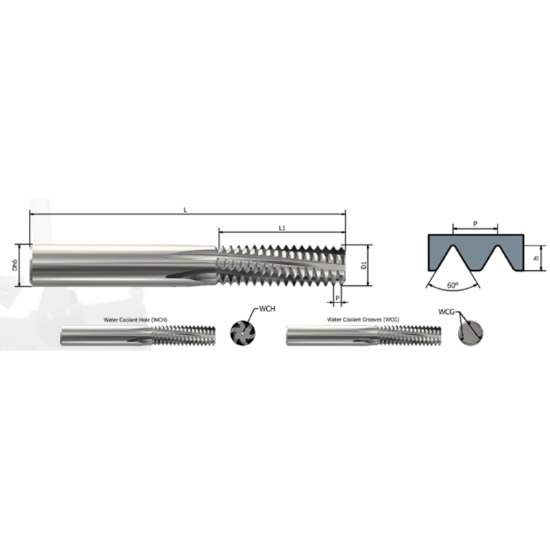

Dimensional Specifications
Thread Pitch 32.00TPI
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.1875 4.75MM
Length Of Cut 0.4060 10.31MM
Thread Size No.10
Shank/Pilot Dia 0.1870 4.75MM
Cutter Dia 0.1460 3.71MM
Overall Len 1.9700 50.04MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Medical Yes
Automotive Yes
Job Shop Yes
Energy Yes
