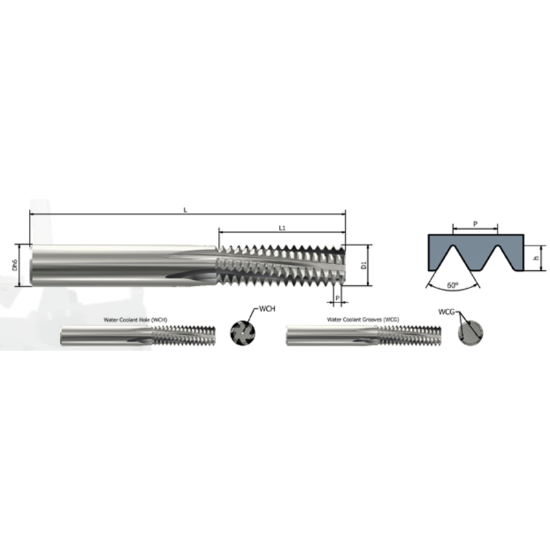

XACTFORM X8002 Carbide Thread Mill #4 40.00TPI Internal 0.080 Dia 1.500 OAL 3 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XACX8002
Delivery date: 3-5 days
$179.30

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Grade K20
Shipping State Florida
Application Thread Milling
Made In USA No
Coating TiN
Package Size 1
Dimensional Specifications
Cut Rating <40HRC, Stainless, Iron, High Temp
Overall Len 1.5000 38.10MM
Flutes/Inserts 3
Thread Pitch 40.00TPI
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Thread Size No.4
Cutter Dia 0.0800 2.03MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.2250 5.72MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Medical Yes
Energy Yes
