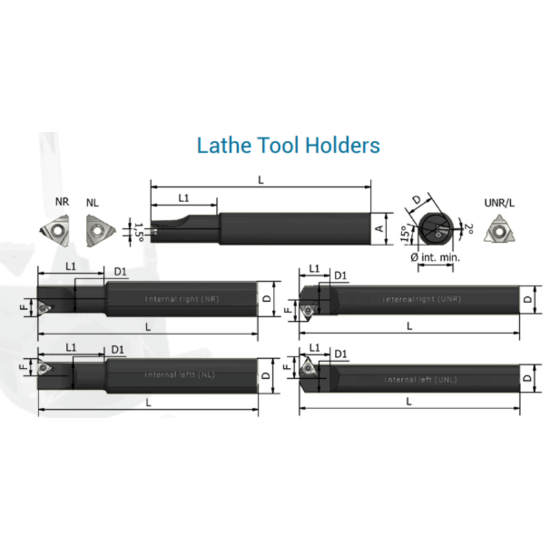

Picture of XACTFORM PO 10-10-11NR Boring Bar Iso Thread Boring Bar 0.354 Shank

XACTFORM PO 10-10-11NR Boring Bar Iso Thread Boring Bar 0.354 Shank

ANSI: PO 10-10-11NR

ISO: PO 10-10-11NR

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XAC20019
Delivery date: 3-5 days
$128.15
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Florida
Insert Type Positive
Package Size 1
Insert/Tool Tool
Application Int.Threading, Int.Groove Threading
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Insert Size Ic 11
Neck Dia 0.3937
Machine Side Connection Size 0.3543 9.00MM
Min Bore 0.5118
Shank/Pilot Dia 0.3543 9.00MM
Machine Side Connection Type Boring Bar
Overall Len 3.9370 100.00MM
Cutting & Machining Properties
Insert Style ISO
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern Internal
