XACTFORM CSP47 Carbide Thread Mill Int / Ext 0.310 Dia 2.480 OAL 6 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XACCSP47
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Package Size 1
Grade K20
Shipping State Florida
Coating TiN
Application Thread Milling
Made In USA No

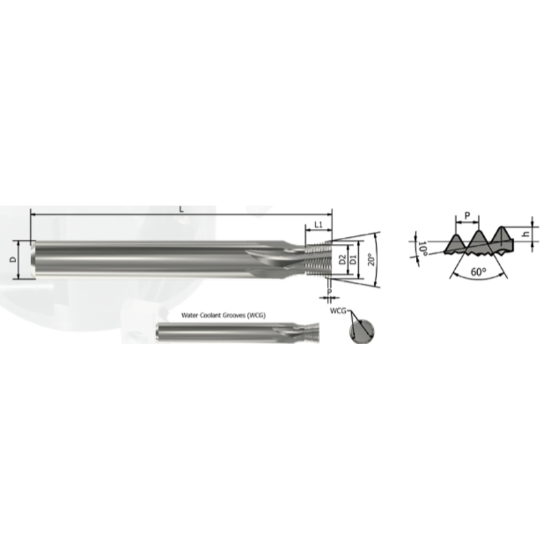

Dimensional Specifications
Length Of Cut 0.2953 7.50MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 2.4800 62.99MM
Cut Rating Stainless, High Temp
Cutter Dia 0.3100 7.87MM
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Machine Side Connection Size 0.3125 7.94MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Inter/Extern Int / Ext
Industry-Specific Applications
Medical Yes
