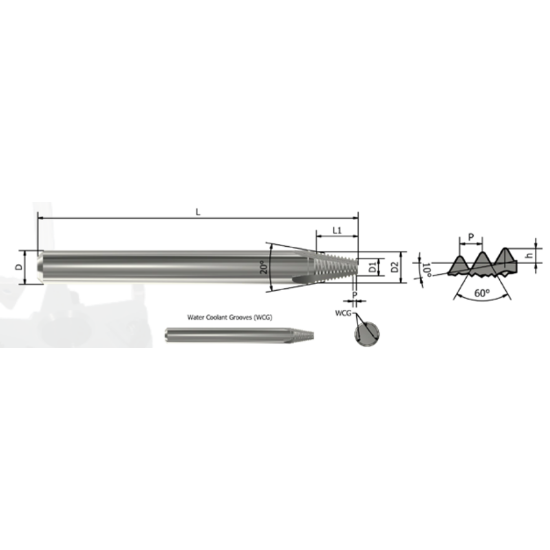

XACTFORM CSP20 Carbide Thread Mill Int / Ext 0.110 Dia 1.500 OAL 3 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XACCSP20
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Florida
Performance Rating High Performance
Application Thread Milling
Coating TiAlN
Grade K27C
Package Size 1
Dimensional Specifications
Cut Rating Stainless, High Temp
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Dia 0.1100 2.79MM - #35
Overall Len 1.5000 38.10MM
Flutes/Inserts 3
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Of Cut 0.1772 4.50MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Inter/Extern Int / Ext
Industry-Specific Applications
Medical Yes
