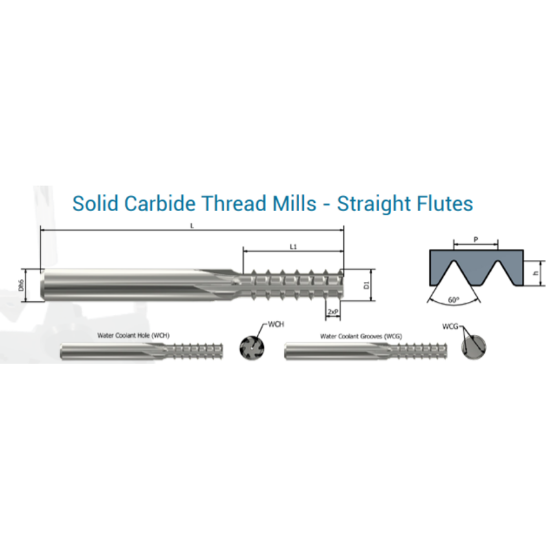

XACTFORM 78900 Carbide Thread Mill #4 40.00TPI Int / Ext 0.080 Dia 1.650 OAL 3 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XAC78900
Delivery date: 3-5 days
$172.70

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Thread Milling
Coating TiAlN
Grade K27C
Made In USA No
Package Size 1
Shipping State Florida
Dimensional Specifications
Cut Rating <40HRC, Stainless, Iron, High Temp
Flutes/Inserts 3
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Thread Size No.4
Cutter Dia 0.0800 2.03MM
Overall Len 1.6500 41.91MM
Thread Pitch 40.00TPI
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.3750 9.53MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Int / Ext
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Aerospace Yes
Medical Yes
Energy Yes
