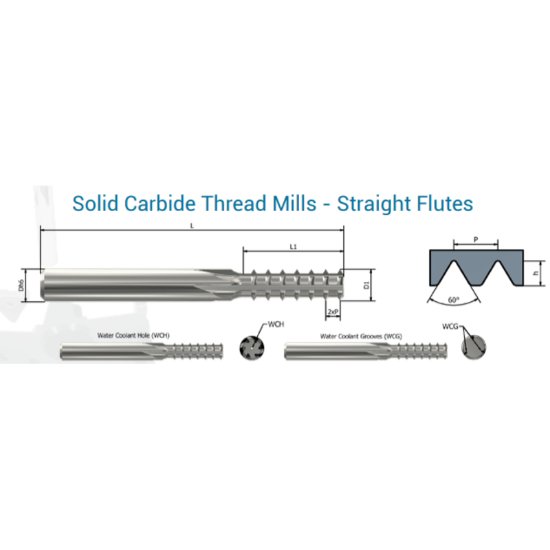

Picture of Xactform 78806 Carbide Thread Mill 7/16" 14.00TPI Int / Ext 0.310 Dia 3.150 OAL 5 Flute

Xactform 78806 Carbide Thread Mill 7/16" 14.00TPI Int / Ext 0.310 Dia 3.150 OAL 5 Flute

Part Number: XAC78806

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: 1295746
Vendor: Sussex Tool and Supply
$356.00
XACTFORM Mill Thread Carbide TIALN Carbide TiAlN (Titanium Aluminum Nitride) is a type of surface coating used to improve the performance and durability of tools and components, particularly in high-speed machining, hard machining, and stainless steel machining. It is characterized by high hardness, thermal stability, and oxidation resistance, making it suitable for demanding applications.
Products specifications
Attribute name Attribute value
Shipping State FLORIDA
Made In USA NO
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless, <40HRC, Iron, High Temp
Coating TiAlN
Overall Length 3.1500 80.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3120 7.92MM
Flutes/Inserts 5
Tool Dia 0.3100 7.87MM
Type Of Tool Thread Mill
Performance Rating High Performance
Length Of Cut 0.8750 22.23MM
Grade K27C
Thread Pitch 14.00TPI
Inter/Extern Int / Ext
Thread Size 7/16"
