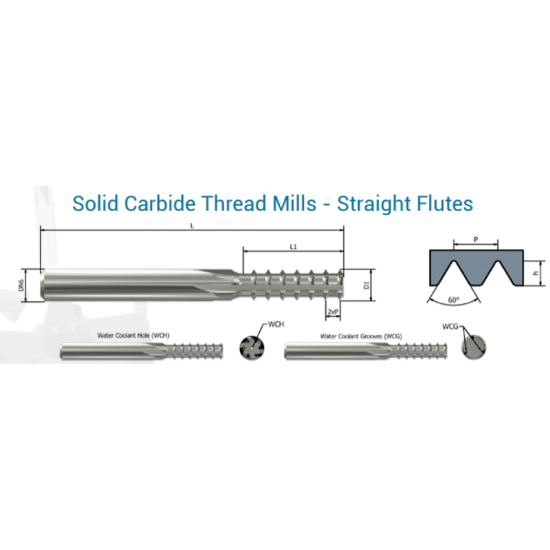

XACTFORM 78804 Carbide Thread Mill 5/16" 18.00TPI Int / Ext 0.200 Dia 2.560 OAL 3 Flute

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XAC78804
Delivery date: 3-5 days
$281.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiAlN
Grade K27C
Package Size 1
Shipping State Florida
Performance Rating High Performance
Application Thread Milling
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Length Of Cut 0.6670 16.94MM
Thread Pitch 18.00TPI
Cut Rating <40HRC, Stainless, Iron, High Temp
Cutter Dia 0.2000 5.08MM
Overall Len 2.5600 65.02MM
Flutes/Inserts 3
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Thread Size 5/16"
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Inter/Extern Int / Ext
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
Energy Yes
Automotive Yes
