XACTFORM 76507 Indexable Thread Mill 3.00MM External Dia 0.827 OAL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XAC76507
Delivery date: 3-5 days
$72.89

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Made In USA No
Shipping State Florida
Coating TiAlN
Package Size 2
Performance Rating High Performance
Grade K27C

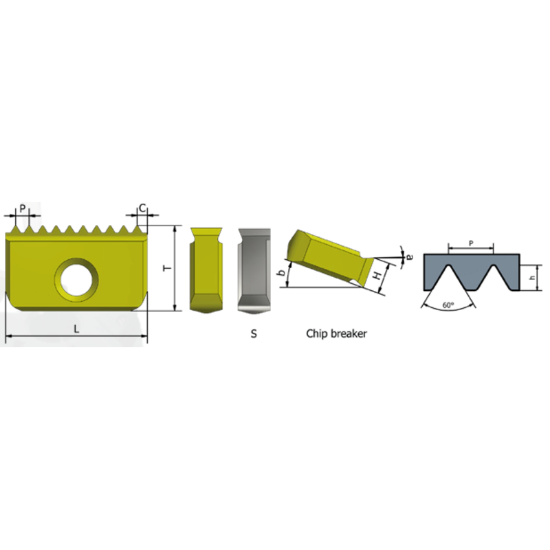

Dimensional Specifications
Thread Pitch 3.00MM
Length Of Cut 0.8270 21.01MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Overall Len 0.8270 21.01MM
Cutting & Machining Properties
Inter/Extern External
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
