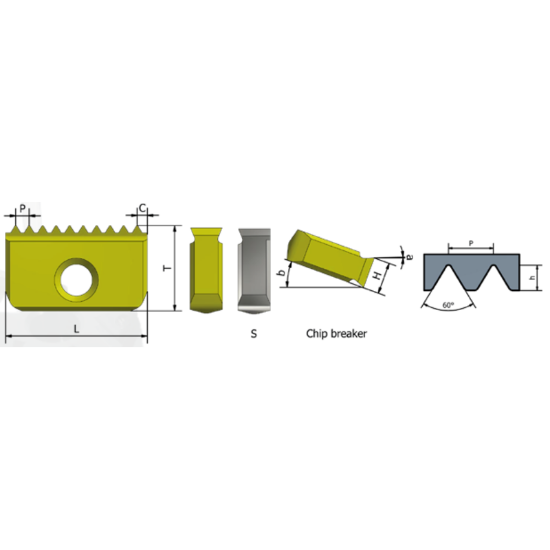

XACTFORM 74238 Indexable Thread Mill 12.00TPI External Dia 1.181 OAL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XAC74238
Delivery date: 3-5 days
$108.83

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Florida
Application Thread Milling
Made In USA No
Grade K20C
Package Size 2
Coating TiN
Performance Rating High Performance
Dimensional Specifications
Overall Len 1.1810 30.00MM
Length Of Cut 1.1811 30.00MM
Thread Pitch 12.00TPI
Cut Rating <40HRC, Stainless, Iron, High Temp
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern External
Industry-Specific Applications
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
