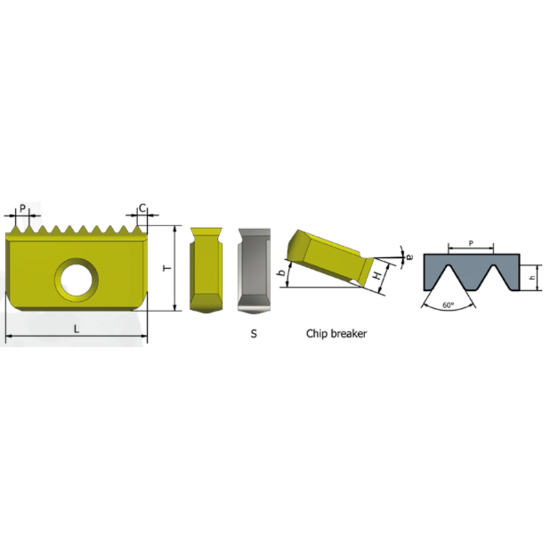

XACTFORM 74227 Indexable Thread Mill 10.00TPI Internal Dia 0.827 OAL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: XACTFORM
SKU: XAC74227
Delivery date: 3-5 days
$72.89

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Made In USA No
Package Size 2
Coating TiN
Performance Rating High Performance
Grade K20C
Shipping State Florida
Dimensional Specifications
Cut Rating <40HRC, Stainless, Iron, High Temp
Thread Pitch 10.00TPI
Overall Len 0.8270 21.01MM
Length Of Cut 0.8270 21.01MM
Cutting & Machining Properties
Inter/Extern Internal
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
